Akes T36

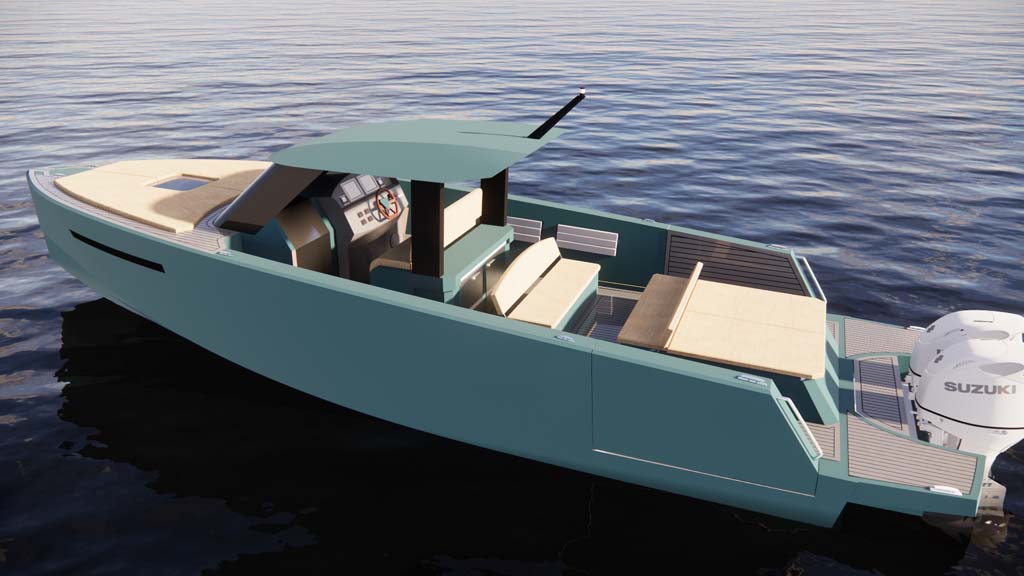

Akes T36 is designed to have a boat with all the comforts for a day in the sea, enjoyable as day-cruiser, but also as chase boat or luxury tender. Shape is classic, with high sheer and vertical bow, low profile stern area and one-level deck floor that ends in two large swim platforms; two wide side passages run along the deck from stern to wheelhouse, contouring a main aft sundeck, two large (2m) sofa seats with table, wet bar with bolster seats. The aft sides of the boat can be opened transforming the aft deck in a large terrace above the sea. The boat design project provides also a comfortable cabin, with bow double bed transformable in U shape seats, a large lavatory with separated shower, and an additional second double bed, in order to accommodate 4 persons.

Read More
Akes T36

Gallery

Construction material is aluminum 5083 with big thickness (6 to 15mm), this alloy allows the best ratio between strength and weight, ensures a monocoque construction and long lasting , keeping the possibility to customize the deck according to customer’s demand.

Engine choice is wide, main option is outboards from 2x250 to 2x450 hp, and it is possible also to use inboard/sterndrive or IPS diesel engines.

Tanks are 900 L for the fuel and 300 L for freshwater.

Hull is deep V and the hull project has been optimized to minimize the roll afloat and offer the max stability while the soft impact and dryness in the waves are always a mandatory requirement and a trademark for Akes design hulls.

Hull structure, stiffeners and thickness are calculated according to CE cat. A rules, same for the stability and buoyancy requirements.

Specifications:

  • Hull lenght m 10,78
  • Lwl m 9,53
  • LOA m 11,16
  • Beam max m 3,8
  • Dry weight m 4850
  • Material: alu 5083
  • max persons 12
  • Gasoline tank L 900
  • Freshwater tank L 300
  • hull type V type
  • deadrise medium 25°
  • Max power 2x425 hp
  • Max speed 48 kn
